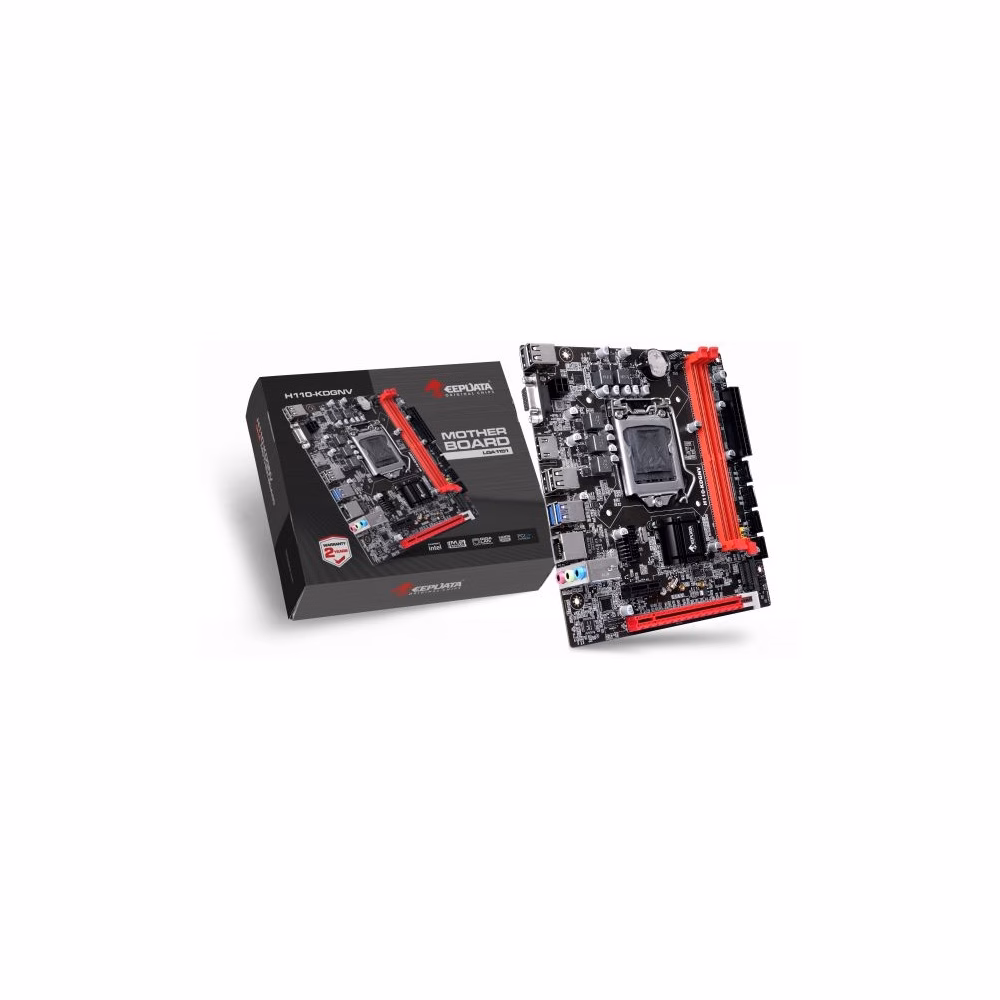

Placa Mãe Keepdata H110-kdgnv, LGA 1151, Giga/nvme/hdmi

Especificações Técnicas:
EAN 7898722600638
CPU Supports 6/7/8th (SKYlake). Intel 14nm CPUs
Chipset Intel H110 Express Chipset
Memory 2 x 240-pin DDR4 SDRAM slots
Memory up to 32GB
Supports dual channel DDR4 2133/2400/2666 MHZ
I/O Interface 4 x USB, compatible with USB2.0
2 x USB, compatible with USB3.0
1 x VGA port
1 x HDMI port
1 x RJ45 port
1 x 3-in-1 Audio port (line In/Line Out/MIC IN)
Onboard Interface 1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x USB2.0 connector, can support 2*USB 2.0
1 x USB3.0 connector, can support 2*USB 3.0
1 x F_AUDIO connector
1 x F_PANEL connector
1 x SPEAKER connector
2 x FAN connector
4 x serial SATA/6GB/S connector port
1 x LPC_DEBUG connector
Integrated sound with 6-channel HD Audio Codec onboard
provides front audio interface;
provides front stereo mic interface
Integrated Lan with 10/100/1000Mbps LAN onboard
Expansion Slot 1 x PCI Express x16 slot
1 x NVMe M.2 connector
Dimension Micro-ATX architecture (17*19cm)
