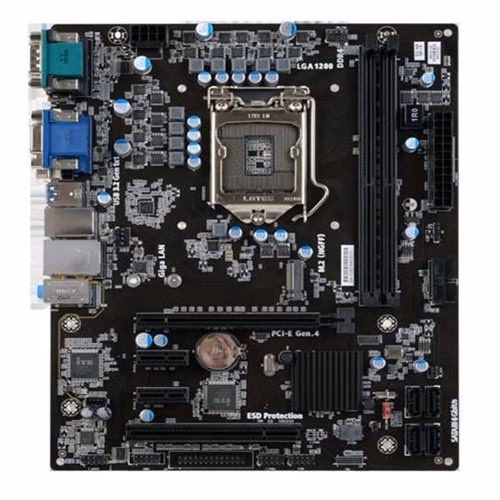

Placa Mãe PCWare IPMH510E, Chipset H510, Intel LGA 1200, mATX, DDR4, OEM

Marca: PCWare
Modelo: IPMH510E

Especificações Técnicas:
CPU
– LGA1200 soquete, suporta processador Intel® 10/11ª geração Core™

Chipset
– Intel® H510

Memória
– Arquitetura de memória Dual-Channel DDR4
– 2 x 288-pin DDR4 Long DIMM soquetes com suporte para até 64 GB
– Suporta SDRAM DDR4 2933/2666 MHz

Slots de Expansão
– 1x PCI Express x16 Gen4 slot
– 2x PCI Express x1 Gen3 slot
– 1x PCI slot
– 1x M.2 slot para 2260/2280 SSD (suporta PCIex4 Gen3 (máx.) / SAA (sata 3.1 compartilhado com M.2)

Rede
– 1x Gigabit Fast Ethernet Controller

Armazenamento
– Suportado pelo Intel® H510 Express Chipset
– 4 x Serial ATA 6Gb/s

Áudio
– 6-CH (5.1) High Definition Audio

USB 3.2
– Total: 3 portas
2x portas no painel traseiro
1x porta onboard (opcional via cabo)

USB 2.0
– Total: 5 portas
4x portas no painel traseiro
1x portas onboard (opcional via cabo)

Painel Traseiro
– 1x PS2 combo connector
– 1x Serial port (COM1 port)
– 1x HDMI port
– 1x D-sub port (VGA port)
– 1x DVI-D port
– 1x DP port
– 2x USB 3.2 Gen1x1 ports
– 1x RJ45 LAN connector
– 4x USB 2.0 ports
– 1x Audio 6-ch jacks (line-in, line-out, microphone)

Conectores internos
– 1x 24-pin ATX Power Supply conector
– 1x 8-pin ATX 12V Power conector
– 1x 4-pin CPU_FAN conector
– 1x 4-pin SYS_FAN conector
– 1x USB 3.2 Gen1x1 header supports additional two USB 3.2 Gen1X1 ports
– 1x USB 2.0 headers support additional two USB 2.0 ports
– 4x SATA 6Gb/s connectors
– 1x Front Panel audio header
– 1x Front Panel switch/LED header
– 1x Onboard parallel port header
– 1x COM header
– 1x Clear CMOS jumper
– 1x Trusted platform module header (TPM)
– 1x Buzzer e Case open header

BIOS
– AMI BIOS 128 Mb SPI Flash ROM, suporta RPMC

Formato
– Micro ATX 224 mm x 200 mm

Garantia
12 meses
