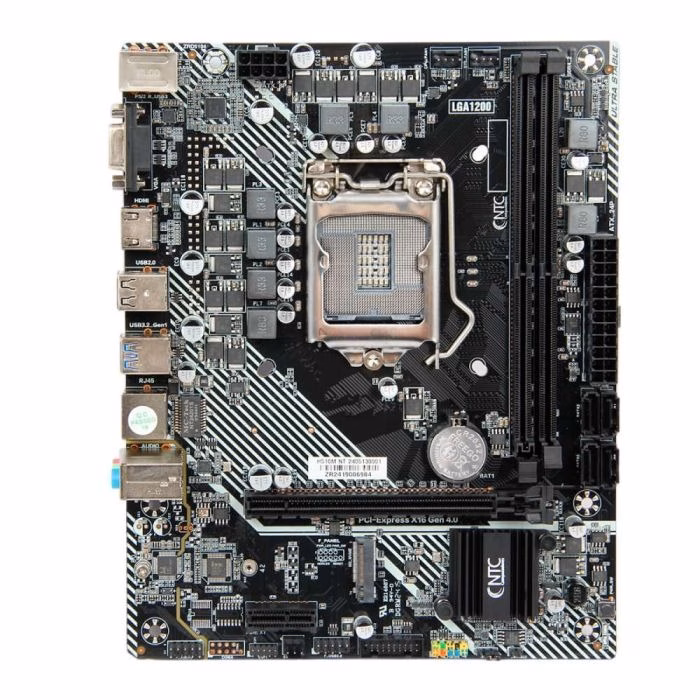

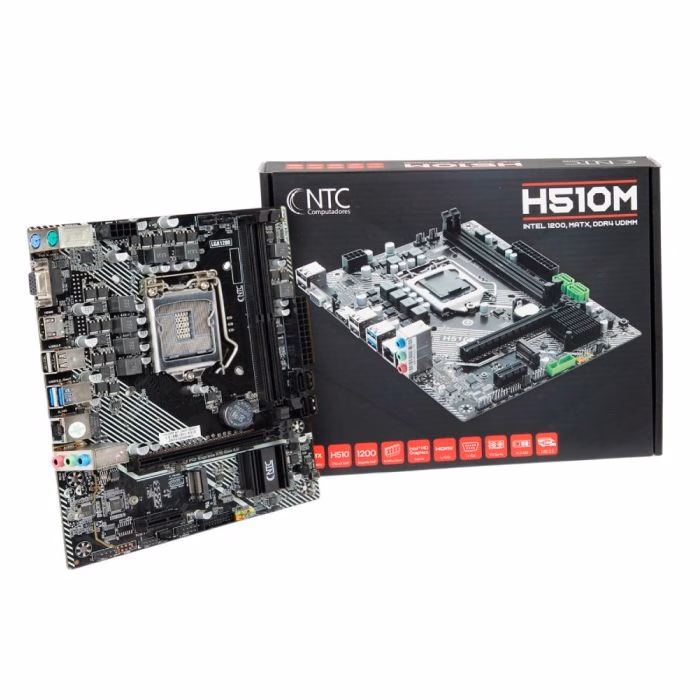

Saltar para o início da Galeria de imagens Placa Mãe NTC H510M LGA1200 2xDDR4 Chipset H510 mATX

Especificações Técnicas

Processador
Support Intel® Socket 1200 for 10th and 11th Gen Intel® Core?, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
6 Fases de VRM
100% Solid capacitor design Chipset
Intel® H510 Express Chipset Memória
Dual Channel – Suporta módulos DDR4 3200/3000/2800/2666/2400/2133MHz*
2x DDR4 dimm até 64GB de Memória RAM
*Frequência de 3200Mhz para processadores de 11°Gen e 2666Mhz para 10°Gen LAN
Realtek RTL8111H (10/100/1000 Mbit) Áudio
Realtek Audio codec ALC897 Slot de Expansão
1 X PCI Express X16 Gen 4.0 slot(s)*
1 X PCI Express X1 Gen 3.0 slot(s)
1 X M.2 slot for SSD (2242/2280 PCI-e x4 Gen3)
*Gen 4.0 para processadores Intel Core de 11° Geração e Gen 3.0 para 10° Geração Conectores interno
1 X 24-pin ATX Power Supply connector
1 X 8-pin ATX 12V Power Connector
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN1 conector
1 X 3-pin SYS_FAN conector
1 X Front panel audio header
1 X Front panel header
1 X USB 3.0 Gen 1×1 header
1 X USB 2.0 header
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 x Power_SW Botton Conectores do Painel traseiro
1 X PS/2 Keyboard
1 X PS/2 Mouse
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI 2.0 port(s)
1 X D-Sub (VGA) port(s)
2 X USB 3.2 Gen 2×1 Type A port(s)
2 X USB2.0 port(s) BIOS
AMI BIOS with 16 MB SPI Flash ROM
ACPI & DMI Form Factor
Micro ATX Form Factor; 23cm x 19.2cm
